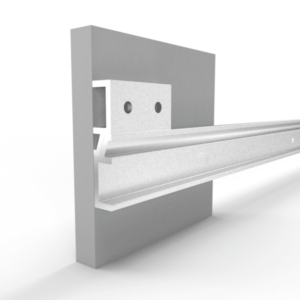

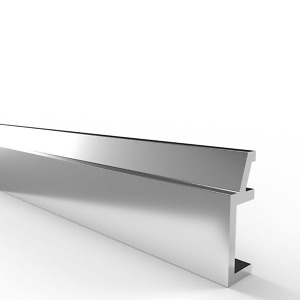

Las Vegas Z Bar French Cleat Hanging Rail 250mm no holes max. 60kg (Qty 1)
The Las Vegas Hanger offers an optimal solution for interior installations requiring a 250mm 10in length of engagement. Constructed from robust aluminium, this hanger ensures durability and longevity in various applications. It provides a 12.8mm projection between the installed item and the wall surface. Furthermore, the 11.2mm lift-off facilitates secure interlocking and straightforward installation. Recognising that each project presents unique requirements, the Las Vegas Hanger offers versatile ways of installation, allowing installers to select the approach best suited to their specific needs. Mating options include clip-to-clip, clip-to-strip, and strip-to-strip configurations, providing flexibility and adaptability to diverse installation scenarios. We recommend careful consideration of project parameters to determine the most effective installation method, ensuring a secure and professional finish.
Included
Las Vegas Z Bar French Cleat Hanging Rail 250mm no holes max. 60kg (Qty 1)
Installation Options
There are three ways of installing a Z Bar System:
– clip on clip
– clip on strip
– strip on strip
Maximum capacity
Please note this is the maximum weight the clips and strips can take, not the wall or fixings (screws, plugs). In most cases fixings will let go before the clips and strips fail. Therefore when hanging heavy items, please ensure that fixings and the wall itself can support the weight of your item (mirror, picture, artwork etc).

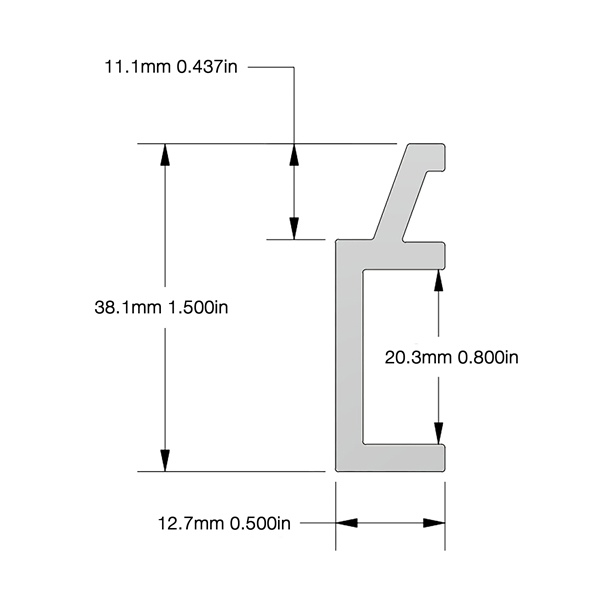

Specification
profile Las Vegas STR050
capacity 60kg 130lb
length 250mm 10in
height 38.1mm 1.5in
depth 12.7mm 0.5in
interlock 11.1mm 0.4in
holes none
How to use

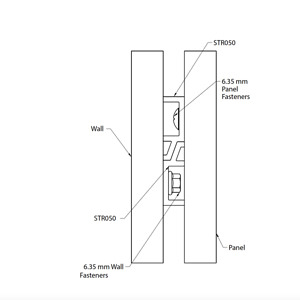

Below you can find drawings and illustration how the system can be used. Only item stated above is included.
