At Metalciti, we supply high-performance aluminium Z-Bar hanging systems—also known as French cleats or split battens—engineered for residential, commercial, and architectural installations. Designed to combine maximum load capacity with a sleek, flush finish, our heavy-duty Z-Bar rails provide a rock-solid, level hold for heavy mirrors, large artwork, acoustic panels, cabinets, and signage.

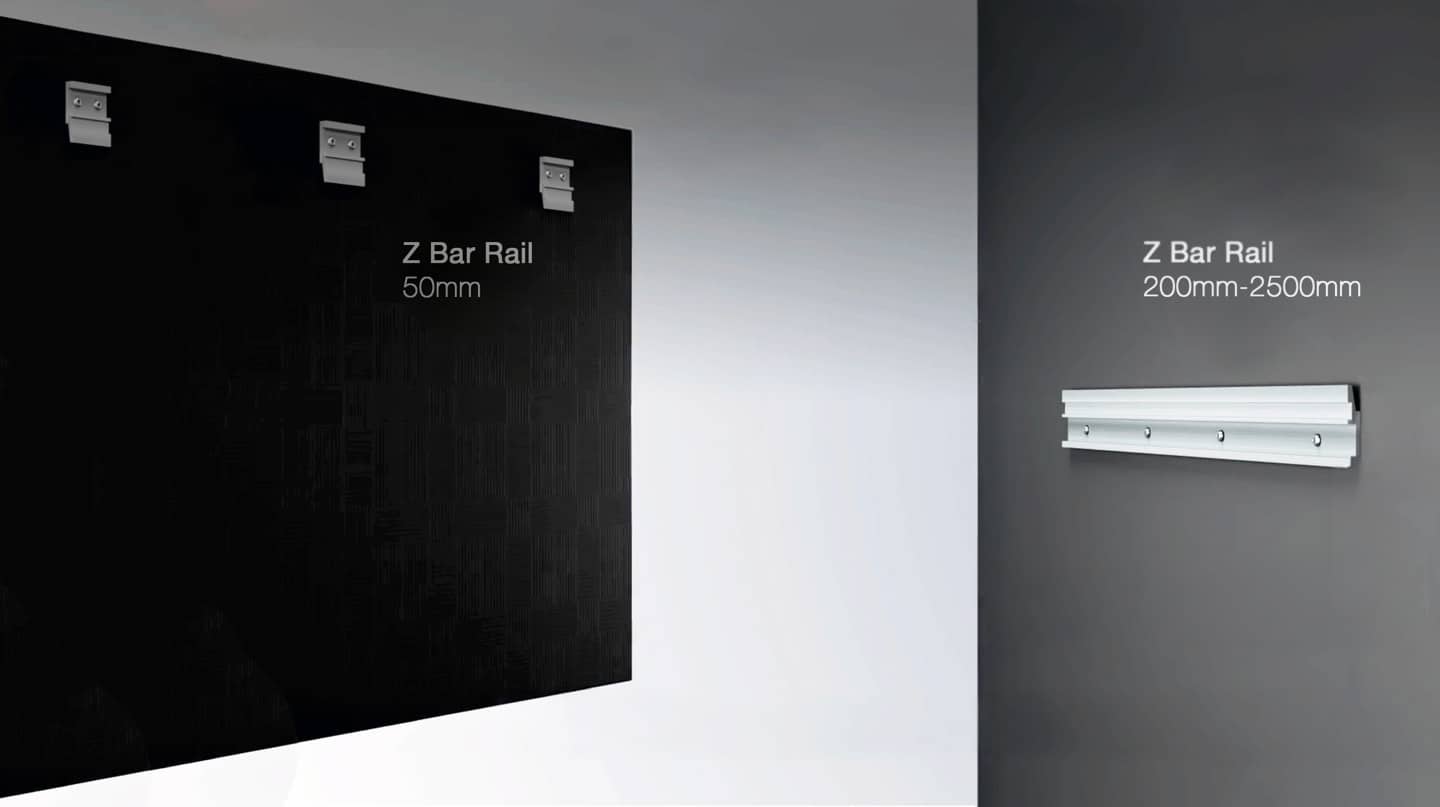

Our Z-Bar systems are engineered with a fully modular design, giving you complete flexibility for any hanging project. Because the interlocking cleat profile remains consistent across the entire range, a longer rail mounted to the wall can easily support a shorter rail attached to your frame—or vice versa.

This modularity allows you to adjust fixing placement around existing wall studs, tailor support for unusual frame dimensions, and create bespoke configurations effortlessly. To support this versatility, Metalciti Z-Bar rails are sold individually (as single lengths)—so you can buy exact quantities and lengths without paying for excess hardware.

Why Choose Aluminium Z-Bar & French Cleat Systems?

Zero-Sag Weight Distribution: Unlike traditional picture wire or single-point hooks, interlocking Z-clips distribute weight horizontally across the entire rail, significantly reducing strain on plasterboard and stud walls.
Ultra-Flush, Concealed Profile: With a low-clearance nesting gap, your mirrors, headboards, and architectural panels mount tightly against the wall with no visible fixings.
Precision Levelling: Installing a single continuous wall track guarantees perfectly level alignment—eliminating crooked frames and double-hook balancing issues.
Easy Disconnect & Servicing: Mounted items lift up and off in seconds, making routine maintenance, rewiring behind illuminated signage, or swapping artwork completely hassle-free.

Applications Across Residential & Commercial Spaces

Application	Key Benefit	Typical Setup
Heavy Mirrors & Glass	High shear strength eliminates wire snaps on oversized decorative and wall mirrors.	Continuous wall batten with matching frame-width top cleat.
Acoustic & Wall Panelling	Concealed interlocking fit ensures zero visible screws on architectural timber or fabric panels.	Dual-tier rails (top and bottom) for flush vertical alignment.
Commercial Signage & Retail Displays	Rapid change-outs for seasonal POS graphics, lightbox displays, and menu boards.	Standard modular single-length extrusions cut to size.
Cabinetry & Floating Units	Secures heavy loads directly into timber or metal wall studs with multi-hole fixing flexibility.	Full-length heavy-duty cleats spaced across structural studs.

Technical Specifications & Sizing Guide

Material Grade: High-tensile, extruded 6063-T6 architectural aluminium.
Finish: Corrosion-resistant natural anodised or mill finish.
Mounting Pattern: Un-drilled or Pre-punched fixing holes (standard centres) compatible with standard masonry, plasterboard, and timber fixings.
Wall Clearance / Stand-Off: Ultra-slim interlocking profile sits less than 6mm (1/4″) from the wall for a virtually flush finish.
Load Capacity: Rated to support up to 400 kg (660 lbs) per pair when properly anchored into solid timber studs or masonry.

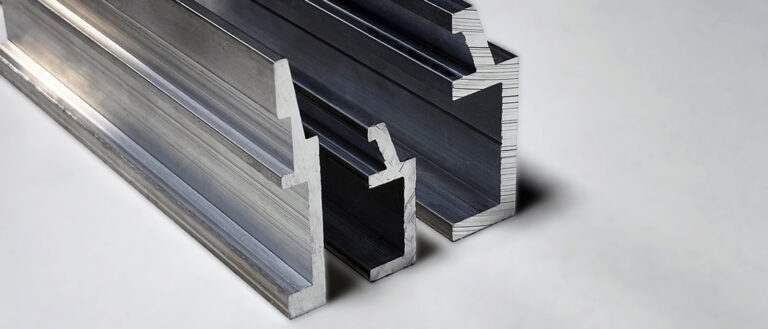

Profile Compatibility: 100% cross-compatible interlocking hook profile across all rail lengths and matching individual Z-clips.
Ordering Flexibility: Available in single continuous lengths (cut-to-size options available) so trade professionals and DIYers only order the exact profile lengths needed.
