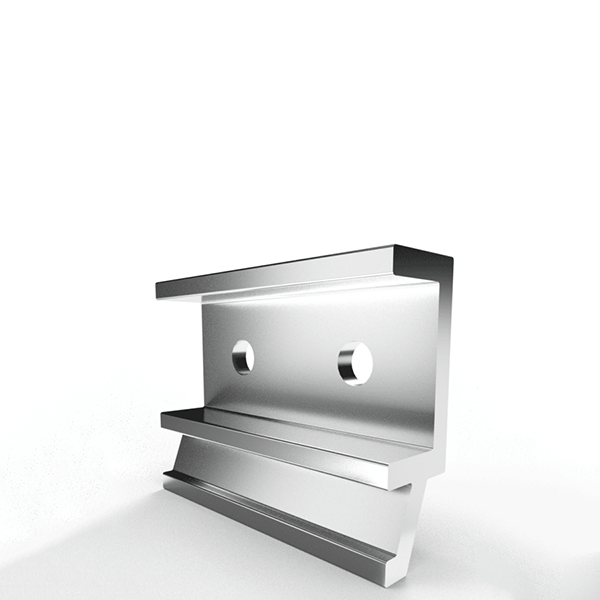

Las Vegas Z Bar French Cleat Hanging Clip 50mm 2 holes max. 50kg (Qty 1)
The Las Vegas Hanger offers an optimal solution for interior installations requiring a 50mm 2in length of engagement. Constructed from robust aluminium, this hanger ensures durability and longevity in various applications. It provides a 12.8mm projection between the installed item and the wall surface. Furthermore, the 11.2mm lift-off facilitates secure interlocking and straightforward installation. Recognising that each project presents unique requirements, the Las Vegas Hanger offers versatile ways of installation, allowing installers to select the approach best suited to their specific needs. Mating options include clip-to-clip, clip-to-strip, and strip-to-strip configurations, providing flexibility and adaptability to diverse installation scenarios. We recommend careful consideration of project parameters to determine the most effective installation method, ensuring a secure and professional finish.
Included
Las Vegas Z Bar French Cleat Hanging Clip 50mm 2 holes max. 50kg (Qty 1)
Installation Options
There are three ways of installing a Z Bar System:
– clip on clip
– clip on strip
– strip on strip

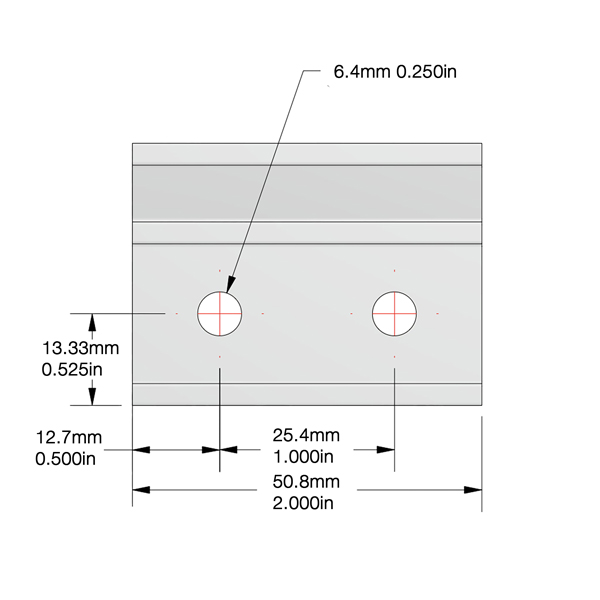

Specification
profile Las Vegas STR050
capacity 50kg 110lb
length 50.8mm 2in
height 38.1mm 1.5in
depth 12.7mm 0.5in
interlock 11.1mm 0.4in
holes 2 x 6.4mm 0.25in
How to use

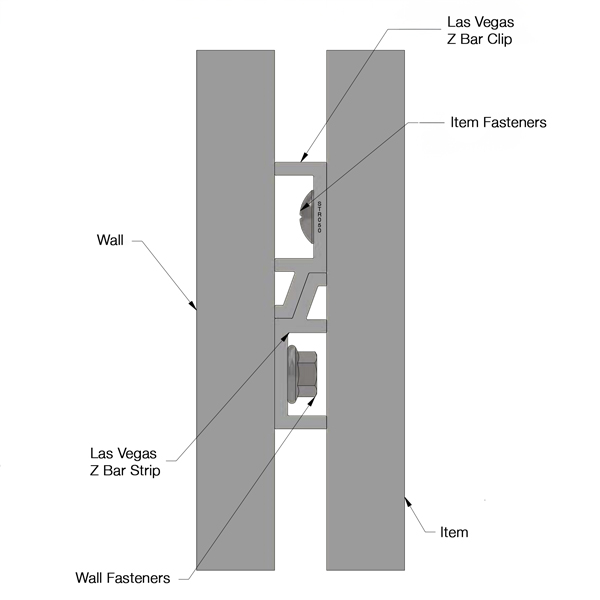

Below you can find drawings and illustration how the system can be used. Only item stated above is included.
