Boston Z Bar French Cleat Hanging Clip 50mm double adhesive with tape max. 8kg

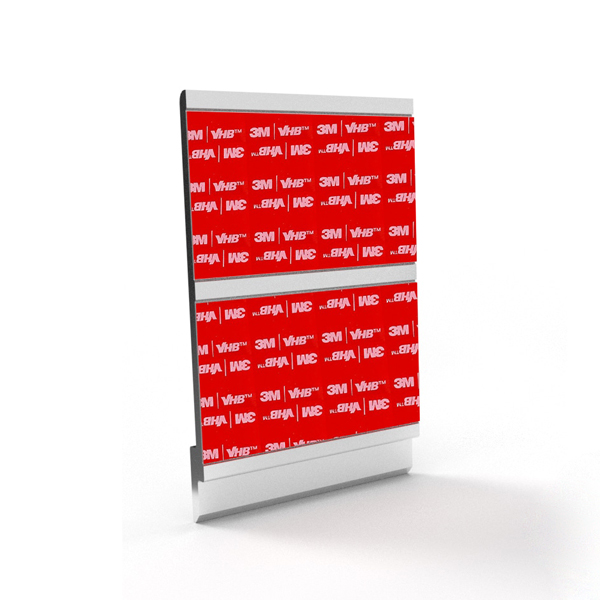

The Boston Adhesive Clip is compatible with all Boston clips and rails. The way it works is the Boston rail is fitted onto a wall with screws, whereas the Boston Adhesive Clip is affixed to the item with 3M tape. That offers a convenient method of securing glass, Aluminium Composite Material (ACM), or phenolic panels in scenarios where traditional screw-based attachment is not feasible. This innovative solution proves particularly valuable for interior installations requiring minimal clearance, specifically a mere 12mm above the panel. Constructed from high-grade aluminium, the clip offers both durability and a sleek aesthetic. The standard stock clip length of 50mm, coupled with the integrated 3M adhesive tape, ensures a robust and reliable bond. Furthermore, the design incorporates a 6mm projection and a 9.5mm lift-off capability, providing a precise and practical installation process. This combination of features makes the Boston Adhesive Clip an ideal choice for achieving a clean, seamless, and secure panel installation in demanding interior environments.
Included
Boston Z Bar French Cleat Hanging Clip 50mm double adhesive with tape max. 8kg (Qty 1)
Installation Options
There are two ways of installing a Z Bar System:
– clip on clip

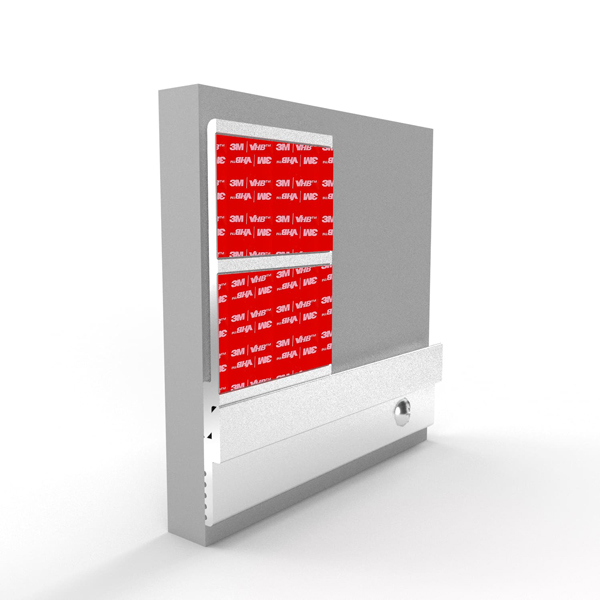

– clip on rail
Specification
profile: Boston Adhesive MFTAPED
length: 50mm
height: 85.7mm
depth: 6.4mm
interlock: 9.5mm
material: aluminium
tape: yes
Features
– 1/2 inch clearance required between the top of the panel and the ceiling
– 6063-T6 aluminium
– Two strips of 3M VHB Tape pre-applied for peel and stick application
– Easily used for mounting phenolic, ACM, aluminium, and back-painted glass panels
– can also be used with unpainted glass panels by substituting a primer and a tape variation (please inquire for pricing)
– Clips are rated for 8kg of shear strength using a 5x safety factor
– 3M has a technical article on how to prepare your panel for tape adhesion
– Suitable for interior applications
– Pairs with Boston Z Bar System (MF375 Clip and Rail)
