Phoenix Z Bar French Cleat Hanging Clip 50mm 2 holes max. 20kg (Qty 1)
The Phoenix Z Bar Hanger System is designed to provide a straightforward and secure method for hanging various items. Constructed from aluminium, ensuring a sturdy and reliable performance without adding significant weight. One half of the Z-shaped bar is securely fastened to the wall, while the other half is attached to the back of the item you intend to hang. The unique design allows the two pieces to interlock neatly, creating a flush and stable mount. This interlocking mechanism distributes the weight of the item evenly across the bar, offering a dependable hold for objects like mirrors, picture frames, and shelves. The system’s simplicity lies in the fact that it requires only a single piece on the wall and a matching piece on the object, making alignment and installation significantly easier than with traditional hanging methods.
Included
Phoenix Z Bar French Cleat Hanging Clip 50mm 2 holes max. 20kg (Qty 1)
Maximum capacity
Please note this is the maximum weight the clips and rails can take, not the wall or fixings (screws, plugs). In most cases fixings will let go before the clips and rails fail. Therefore when hanging heavy items, please ensure that fixings and the wall itself can support the weight of your item (mirror, picture, artwork etc).
Installation Options
– clip on clip
– clip on rail
– rail on rail

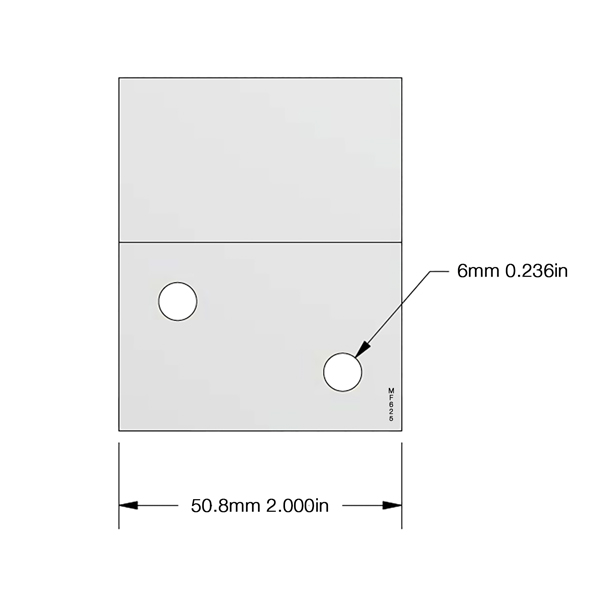

Technical Drawings
Why to use
The Z Bar hanging system is a versatile rail or rails used in construction, cabinets, store fixtures and displays, signage, enclosures, and hanging artwork and pictures. There are many applications where z bars, or z channels, can be used for furring out walls or used for insulation applications.

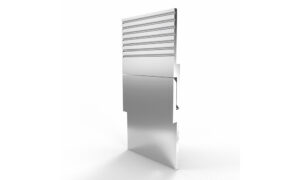

For illustration only
Here are examples how Z Bar rails and clips can be used for hanging. Please always check what’s included in the description.
