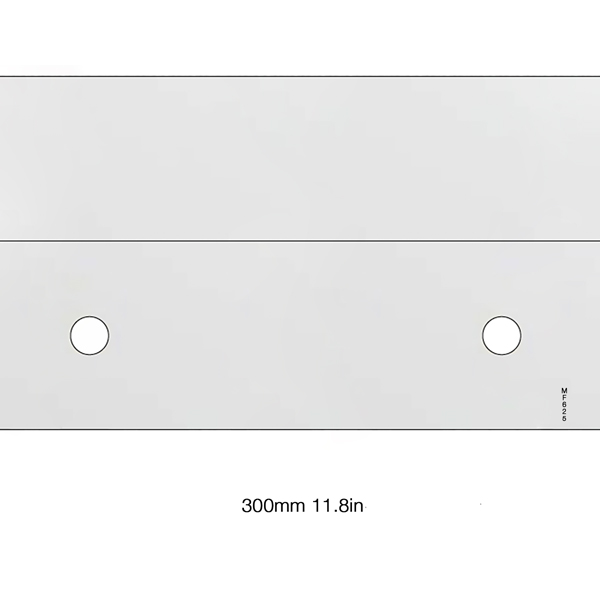

The Phoenix 300 mm (11.8″) aluminium French cleat Z-Bar hanging rail is a heavy-duty mounting profile designed for securing small-to-medium picture frames, mirrors, cabinets, and wall panels. Extruded from high-quality aluminium alloy, this pre-drilled 300 mm rail features 3 factory-punched fixing holes for fast, hassle-free installation. Ideal for residential, commercial, and gallery applications, the Phoenix Z-Bar provides a rock-solid, invisible hold with zero visible wall fixings.
Key System Benefits
Heavy-Duty 32 kg Load Rating — High-grade extruded aluminium alloy profile supports up to 32 kg per rail when anchored securely into timber wall studs or solid masonry.
Factory Pre-Drilled (3 Holes) — Comes with 3 pre-punched fixing holes spaced evenly along the 300 mm length, eliminating the need to drill through tough aluminium on site.
Ultra-Slim Interlocking Profile — Low-profile Z-shaped design holds heavy items almost flush to the wall for a clean, floating aesthetic.
Modular & Mix-and-Match Compatible — Interlocks seamlessly across all rail lengths in the Metalciti Phoenix Series, allowing you to pair a 300 mm wall rail with shorter cleat segments or longer track runs.
Technical Specifications & Downloads
Rail Length: 300 mm (11.8″ — easily trimmed using a standard hacksaw)
Maximum Weight Capacity: 32 kg (Subject to wall substrate and anchor rating)
Profile Hole Type: Pre-Drilled (3 factory fixing holes)
Series Compatibility: Interlocks with all Metalciti Phoenix Series Z-Bar cleat configurations
Technical Drawings: PDF Drawing | DWG CAD File
Installation Manual: Download Z-Bar Hanger Instructions (PDF)
Modular Z-Bar Interlocking System Guide
The Phoenix Z-Bar system is engineered with a fully modular design. Because the interlocking cleat profile remains consistent across the entire Metalciti Phoenix range, a longer rail mounted horizontally to the wall can easily support shorter rail segments attached to your frame or panel—or vice versa. This lets you purchase exact individual quantities, adjust anchor placement around existing wall studs, and create custom configurations without paying for excess hardware.
Common Installation Configurations:
Split Anchor Fit: One 1200 mm rail on the wall paired with two 300 mm rails across the back of the item.
Custom Offset Fit: One 600 mm rail or 900 mm rail on the wall paired with two 300 mm rails on the item.
Standard Direct Fit: Two 300 mm rails mounted horizontally for compact frames or panel fixings.
Installation & Structural Load Safety
- Offer the pre-drilled 300 mm rail up to your wall or frame level, marking your fixing positions through the 3 factory holes.
- Fasten one Z-Bar rail to the wall pointing upward and outward using suitable wall plugs or timber stud screws.
- Fasten the matching Z-Bar rail to the rear top edge of your frame or cabinet pointing downward and inward.
- Lower the item onto the wall rail until the cleats interlock firmly.
Load Capacity Safety Note: The stated 32 kg weight capacity refers to the structural strength of the aluminium Z-Bar rail itself. In heavy-duty applications, wall fixings or plasterboard construction will typically fail before the aluminium profile. Always ensure your wall structure and anchor fixings are rated to support the total load.
What’s Included in the Box
1 × Phoenix Aluminium Z-Bar French Cleat Rail 300 mm (Pre-Drilled with 3 Holes – 32 kg Rating)
Note: Rails are sold individually (not in pairs) to allow custom length combinations. Fixing screws and wall plugs are sold separately.
How to use
Here are example images of how the system can be used. Look above for what’s included.
